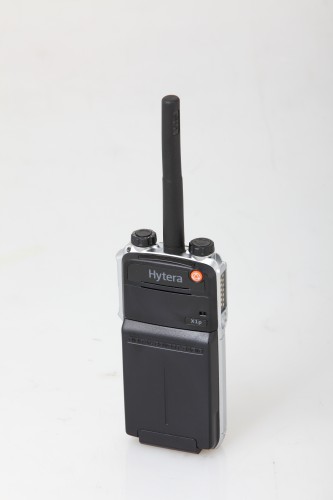

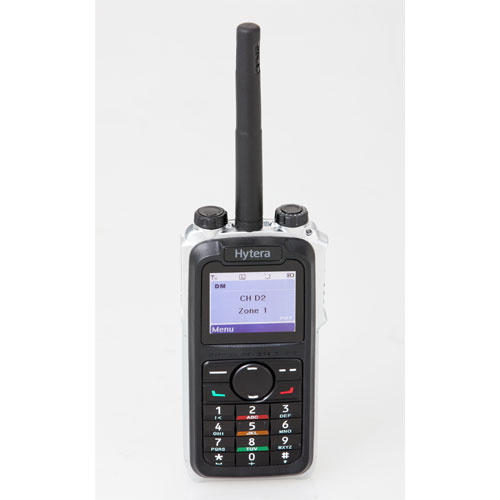

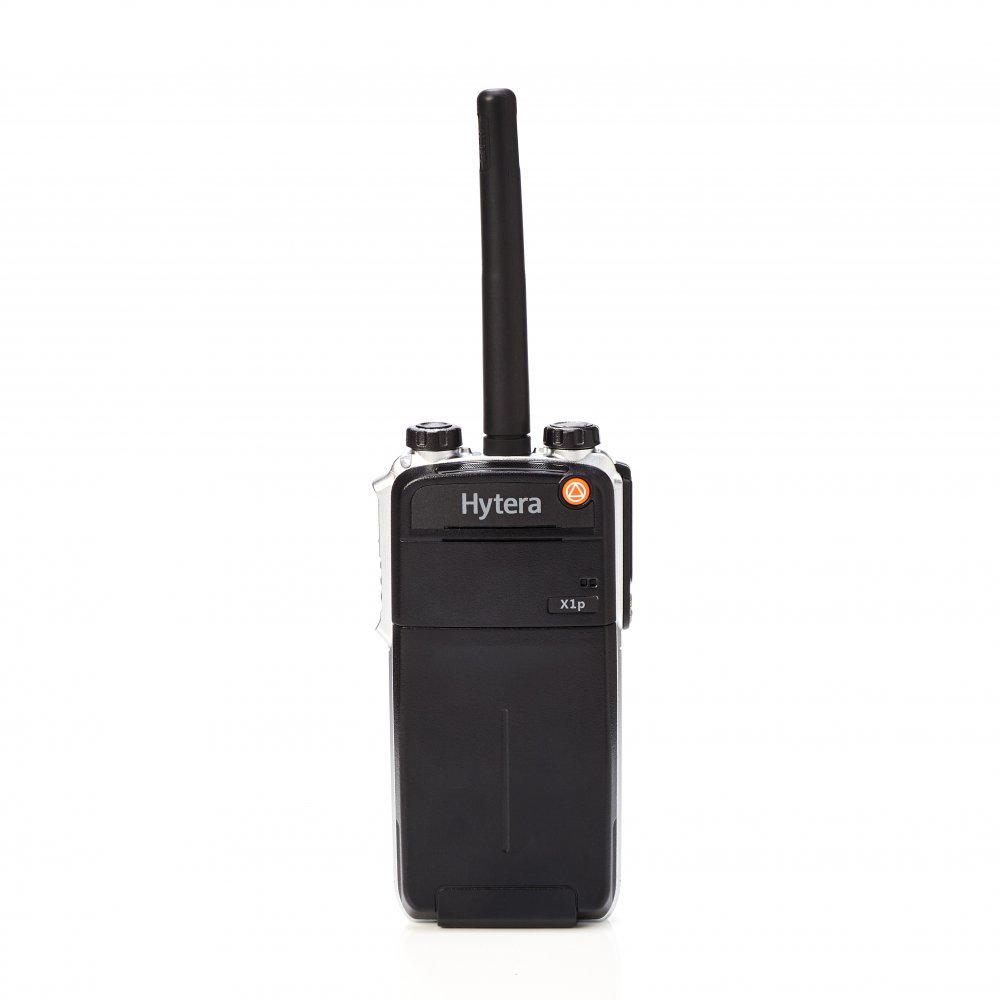

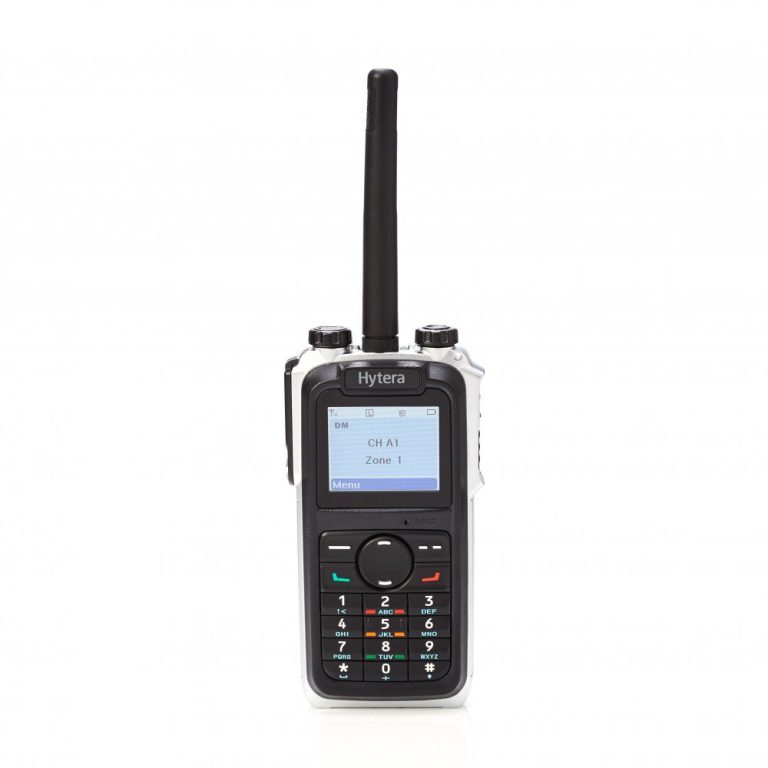

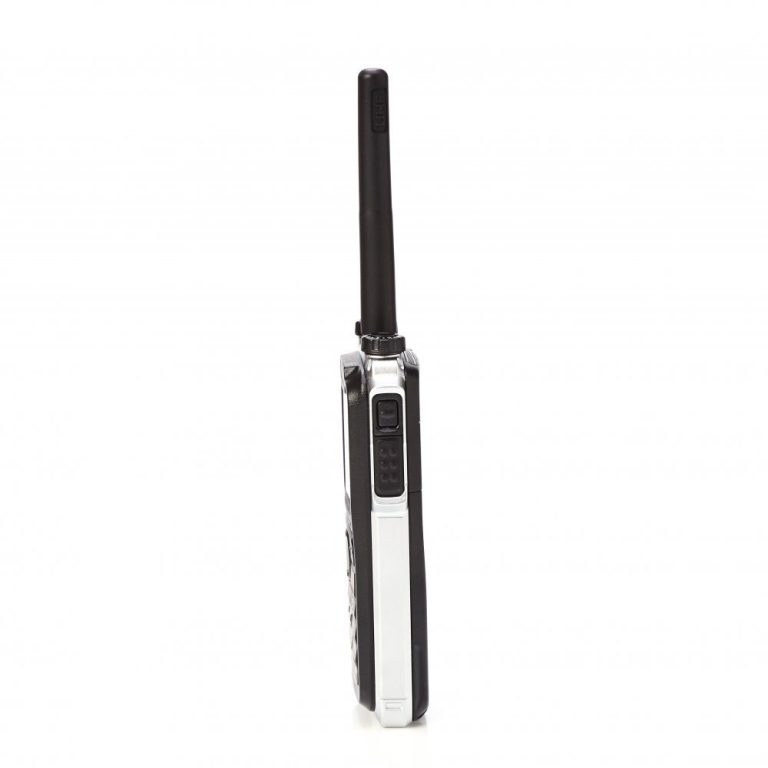

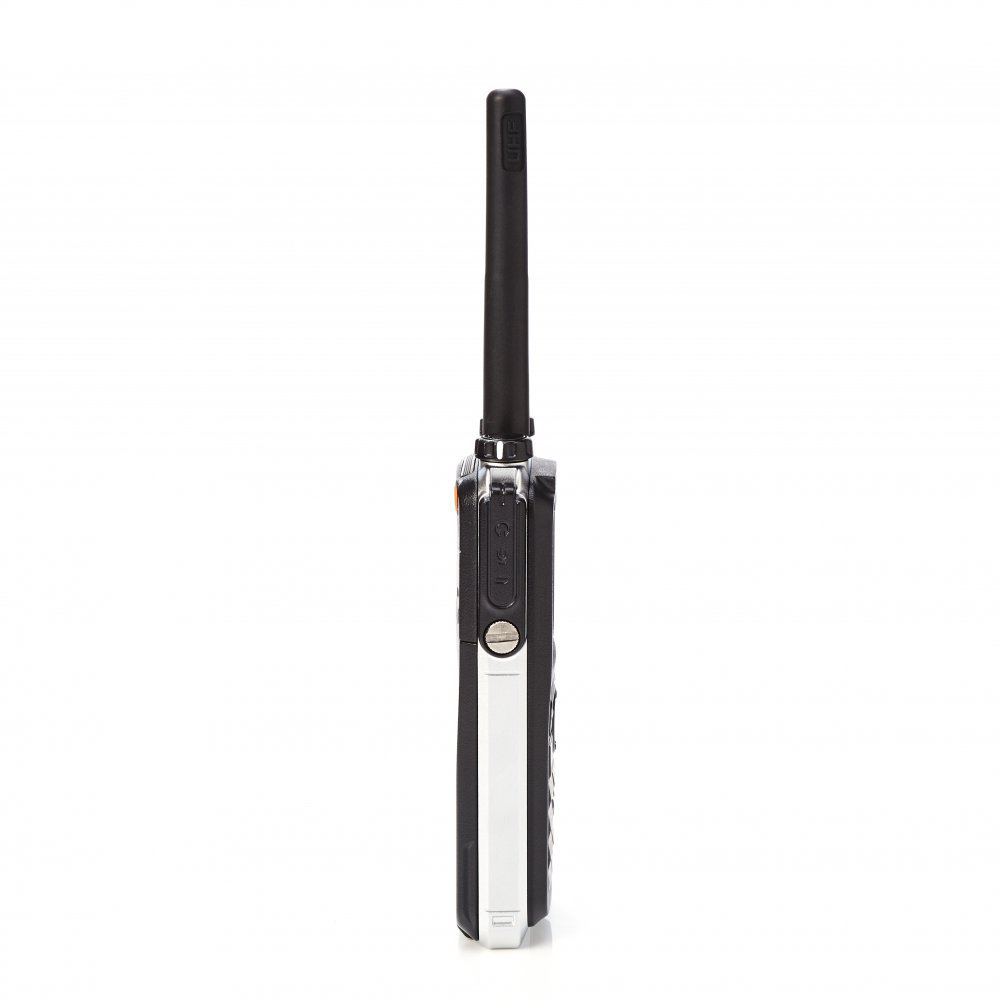

Hytera X1p
POA
Hytera X1p, ultra-thin full power keypad digital portable radio, complies fully with ETSI open standard. Perfect combination of structural rigidity, versatile functionalities, and refined design; secure communication ensured by AES encryption algorithm & 256 digit dynamic encryption keys; convenient application development facilitated by built-in Bluetooth and USB port; and worry-free handling achieved by IP67 protection.
SKU:
Ease of use
Easy to use with the rugged body as thin as 21mm, professional wireless headsets or collar microphone*, palm controller and flexible antenna.
IP67 compliance
Complies with IP67 requirements, withstanding up to 1m submersion for 30 minutes or more.
Rugged & reliable
Complies with MIL-STD-810 C/D/E/F/G standards and passes HALT (Highly Accelerated Life Test) .
Large-size Colour Display
X1p adopts a 1.8″ TFT LCD display (65536 colours), allowing good visibility even under outdoor strong sunlight.
Advanced encryption
AES encryption algorithm & 256 digit dynamic encryption keys ensure secure communication.
Supports Hytera Bluetooth earpieces*
The radio supports Hytera Bluetooth earpieces, facilitating operations.
Open USB interface
Open USB port facilitates secondary and application development.
GPS positioning
The built-in GPS module supports GIS applications.
Dual mode (analog & digital)
Dual modes (analog & digital) operation ensures a smooth analog-todigital migration.
Versatile voice calls
Versatile voice calls include individual call, group call and all-call.
Vibration
Vibration alerts the reception of voice call and message.
Rich signaling
Supports multiple advanced analog signaling, including HDC1200, DTMF, 2- Tone* and 5-Tone, providing more expansion capacity.
Software upgradable
Upgradable software enables new features without buying a new radio.
|
General |
|
|
Frequency Range |
VHF: 136 – 174 MHz UHF1: 400 – 470 MHz UHF2: 450 – 520 MHz UHF3: 350 – 400 MHz |
|
Channel Capacity |
64 |
|
RF Power Output |
VHF: High Power 5W VHF: Low Power 1W
UHF1/ UHF2/UHF3: High Power 4W UHF1/ UHF2/UHF3: Low Power 1W |
|
Rated Audio Power Output |
0.5W |
|
Battery Life (5-5-90) |
Analog: 10 Hours Digital: 14 Hours |
|
Dust and Water Ingress Protection |
IP 67 Standard |
|
Weight |
240g |
|
Dimensions H x W x D (Without Antenna) |
119.5mm x 57mm x 21mm |
