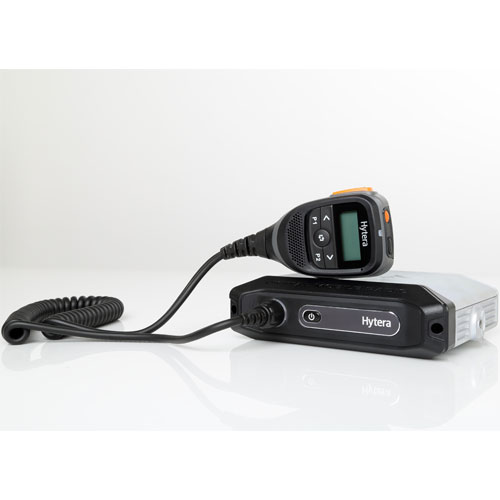

Hytera MD655
POA
MD655
The lightest DMR mobile radio, RF output power adjustable from 1W to 25W, DMO True 2-slot, Easy operation microphone with display, Supports multiple advanced analogue signalling modes, including HDC1200, 2-Tone and 5-Tone for better integration into existing analogue radio fleets.
SKU:
Lightweight, Sleek and Stylish
Only 165x46x140mm in size and weighs a mere 1.05kg (including smart microphone).

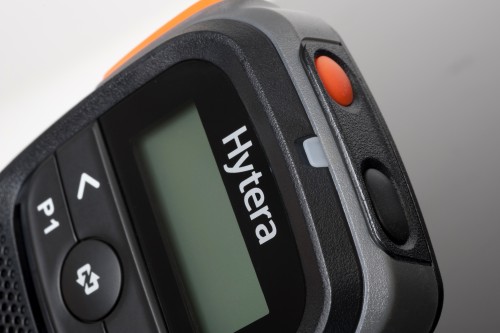

Remote Control
All operations are done via the microphone and are easy to use and control.
Selectable RF Power Output
Continuously adjustable from 1W to 25W.
Continuously adjustable from 1W to 25W.
Uses narrowband codec and digital error-correction technologies for superior voice clarity in noisy environments or at the edge of the coverage area. Also includes AGC technology for optimising voice input and output.
Advanced Signaling
Supports multiple advanced analogue signalling modes, including HDC1200, 2-Tone and 5-Tone for better integration into existing analogue radio fleets.
Versatile Services
In addition to conventional communication services, MD65X features rich data services and selectable functions such as: Text Message, Telemetry, Emergency, OATP and GPS.
DMO True 2-Slot
In DMO mode, Hytera provides 2-slot communication which allows for two talk channels on a single frequency.
Dual-slot Pseudo Trunk
With this feature, a free time slot can be allocated to a member who needs to communicate urgently, effectively enhancing frequency efficiency and allowing timely communication in emergency situations.
Reliable Quality
MD65X is compliant with the stringent MIL-STD-810 C/D/E/F/G and IP54 standards, ensuring outstanding performance even in harsh environments.
GPS Positioning (Factory Option)
The built-in GPS module supports GIS applications.
General |
|
Frequency Range |
VHF: 136 – 174 MHz UHF1: 400 – 470 MHz |
Channel Capacity |
1024 |
RF Power Output |
VHF: High Power 25W VHF: Low Power 5W
UHF1/ UHF3: High Power 25W UHF1/ UHF3: Low Power 4W |
Rated Audio Power Output |
1.5W |
Operating Voltage
|
13.6V ± 15%
|
Standby
|
<0.6A
|
Receive
|
<2.0A
|
Transmit |
<5A (5W) <8A (25W) |
Dust and Water Ingress Protection |
IP 54 Standard |
Weight |
1.05kg |
Dimensions H x W x D
|
165mm x 46mm x 140mm |
